AC Axial Cooling Fan Capacitor Type 220x220x60mm 110V 220V High-Temperature Resistance Of Circular Cooling Fan 22060
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
AC Axial Cooling Fan Capacitor Type RGC22060
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Frequency | Voltage | Current | Rated Input Power | Air Flow | Static pressure | Noise | Speed |
| (Hz) | (V) | (A) | (W) | (CFM) | (Inch-H2O) | (dBA) | (RPM) |
| RGC22060B1HA | Dual Ball | 50Hz | 100~125V | 0.28 | 32 | 480 | 1.20 | 52 | 2850 |
| 60Hz | 0.30 | 35 | 520 | 1.20 | 54 | 3200 |
| RGC22060B2HA | 50Hz | 220~240V | 0.16 | 32 | 480 | 1.20 | 52 | 2850 |
| 60Hz | 0.17 | 35 | 520 | 1.20 | 54 | 3200 |
All designs and specifications are for reference only and are subject to change without notice.
Different customer requirements and different raw materials will lead to different data.
Provider details are used for reference only. For future information, please contact us.
| Product Name | AC Axial Cooling Fan Capacitor Type |
| Warranty | 1 Year |
| After-sales Service | Online Support |
| Frame | Aluminum Alloy, Painted Black |
| Impeller | Retardant Thermoplastic In Black |
| Motor | Capacitor-Run External rotor induction |
| Waterproof Grade | IP 55 |
| Certification | CE, RoHS |
| Lifetime | 40000 Hours |
| Customized Support | OEM, ODM |
| Storage Temperature | -20℃~80℃ |
| Operating Temperature | -10℃~70℃ |
| Power Connection | Terminal, Lead Wire |
Applicable: Manufacturing Plant, Machinery Repair Shops, etc
Power Connection:
Terminal
Lead Wire
Drawing:
Characteristic Curve:

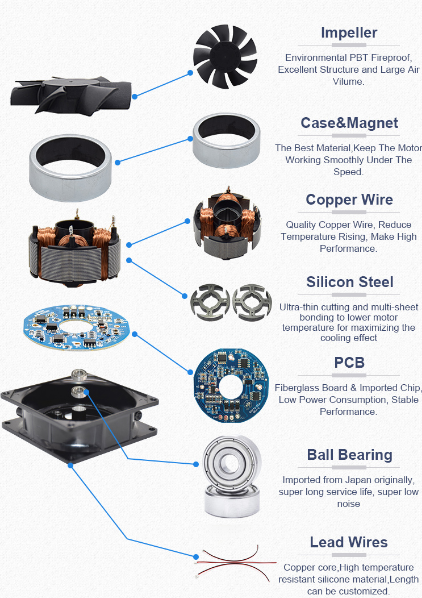

Parts:
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: for large order.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
1.Why do we have to choose your social company?
(1) 100% and the quality of our faith because we had a strong team, with the strict quality control system QC
(2) the price is competitive
(3) to provide superior customer service
2. What are you?
12 months warranty and we offer ingenious online support,
3. Why do we accept payment methods?
T. 50/100, etc affiliated
4.Can you provide OEM / major manufacturer services?
insurance such as tools, packaging, and some of our architects will do their best to meet your requirements.
Product Tags:
|
|
220V 220x220x60mm Outer Rotor Fan Capacitor Type High Temperature Resistance Images
|
